작성일 : 14-04-07 09:17
[제품/정물] Cherry Corp keycap printing methods comparison
http://l.otd.kr/VDPFB3I5
 글쓴이 : photekq
조회 : 456

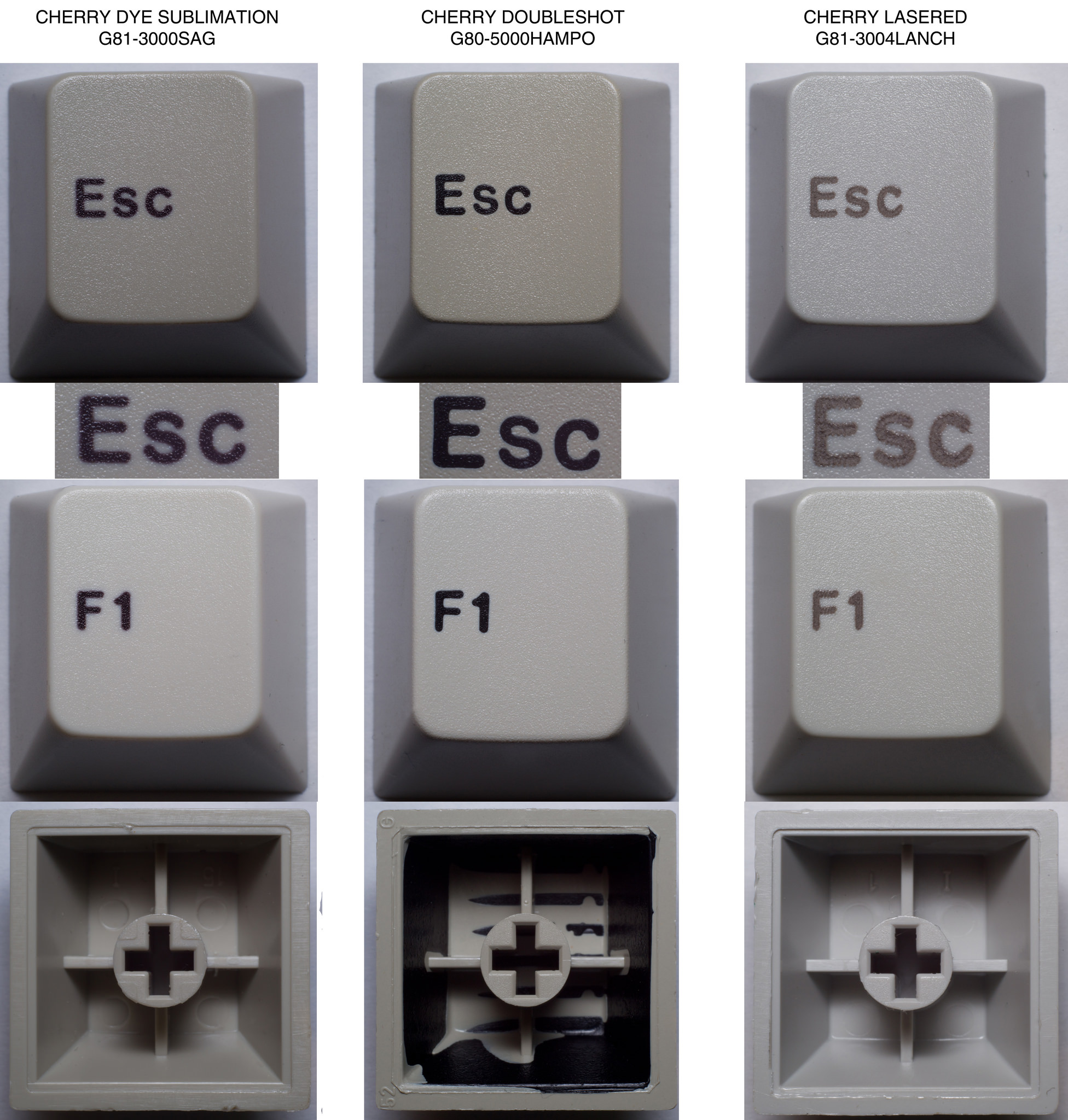

Hello! Here is a simple comparison image I made that shows the different printing methods used by Cherry Corp. This is LOW RESOLUTION version. For full resolution please see here : https://farm8.staticflickr.com/7338/13678709145_ac36edf223_o.jpg


Thank you! ^^

josh 14-04-07 09:47

nice pic my friend
^^
photekq 14-04-07 09:49

Thanks josh :)
josh 14-04-07 10:03

BTW
I registered imgur but seems like I already forgot it..
just post some pics -_-
http://joshjing.imgur.com/
photekq 14-04-07 10:06

Awesome, thanks! 8904, 3116.. wannnnnt. My 3077 case arrived, just need an ANSI PCB/ANSI dyesubs now :D
josh 14-04-07 10:11

thanks!
ah, I got some ANSI PCB but all in China -_-
hoangthanh206 14-04-07 15:16

Really nice pic, photekq:) cherry abs double shot still the best exept the shine :p
photekq 14-04-07 23:36

Thanks :) I prefer dye sublimation though. Nicer texture, and I think the legends look better in person. Also no yellowing :D
애셋 14-04-07 15:48

Thanks! ^^
DSPman™ 14-04-07 16:49

I like a double shot!
A coffee too! ^^;
혜화 14-04-07 17:21

nice pic! thx^^
dubs 14-04-08 01:06

very large picture ;)
포트노이 14-04-08 04:14

those keycaps seem nice.
I like PBT material and double shot.
But I'm a ML switch geek. so I want ml keycaps.
but there is no way to get custom ml keycaps.
anyways, nice comparison pics.
photekq 14-04-09 00:09

Thank you :) I want to try ML, but I have never had the chance. I believe GMK can make custom ML keycaps, and I also think BSP can do dye-sublimation printing for ML keycaps!
포트노이 14-04-09 13:36

I've tried to order custom ml keycaps before too.
(Signature plastics, smartkeyboardsolutions.com, assemblink.com, etc..except gmk, bsp) they all sent same answer "we can make only bulk." I understand that.
I'm gonna ask to GMK,BSP soon, But I don't expect it.

-from a minority ML user- hahahaㅠ_ㅠ
photekq 14-04-10 01:15

Ah, I see.. I know that GMK, BSP have high minimum order. Maybe you could get enough orders in a GB though.

I hope that I'll get my first ever ML keyboard soon.. The Tandberg G84. I see that you have one yourself. What do you think of it vs. other G84s?
포트노이 14-04-10 03:36

oh, Tandberg? that's really nice keyboard.
usually, cherry G84 series use ML-A type switches except g84-4700.
but tandberg uses same ML switches as G84-4700.
(those switches in g84-4700, tandberg is called ML-B type switches)

in my opinion ML-B type switches are more smooth than A type.
so If I have to get only one between tandberg and other cherry's, I'll always choose tandberg.
But you should know about keycaps.
tandberg's keycaps pitch, size are differnt from cherry's.
so if you try to swap keycaps, probably it looks weird or it doesn't match.
photekq 14-04-10 04:34

Thanks for the info! I think there must be different versions of the Tandberg, as there is a version with ML-A type. As shown in this picture by Sixty : http://i.imgur.com/nNWV0.jpg
I look forward to trying ML!
Kazusa丶 14-04-10 11:12

great information
포트노이 14-04-10 20:24

you're welcome!
there is a different version of tandberg like following link.
( http://www.otd.kr/bbs/board.php?bo_table=album&wr_id=85361&sca=&sfl=wr_subject&stx=tandberg )
and sixty's tandberg is ML-B type.
have a nive day!
김외길 15-02-04 13:11

i want to get all of them!
