작성일 : 13-07-04 11:35
[모임/인물] What is vintage black?
http://l.otd.kr/VDPFB3I5
 글쓴이 : josh
조회 : 456

I'm sorry to write in English, although my English is not very good...



I know the vintage black is popular among the Korean keyboard fans. But I wonder how to distinguish the vintage black from other black switches..

I asked my friend, you may know him.. yab8433408, he said the judgement is the typing feeling.

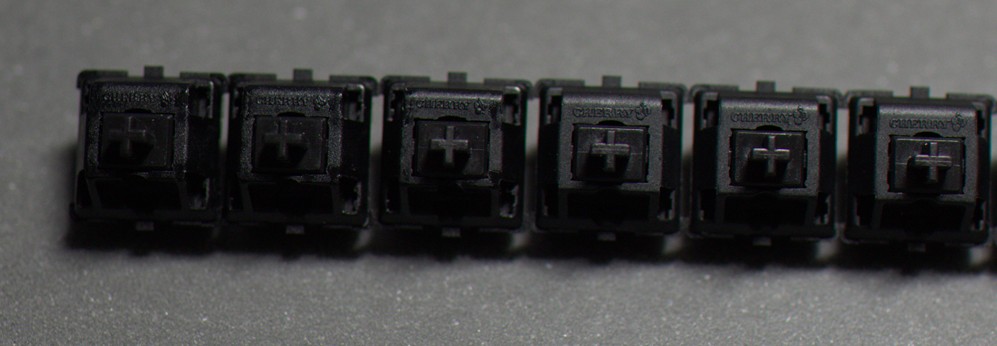

But my another friend said..1. The springs of vintage black are different from others..the color is golden. 2. The cover of the vintage black is different.. the cherry logo is not very close to the slider top..

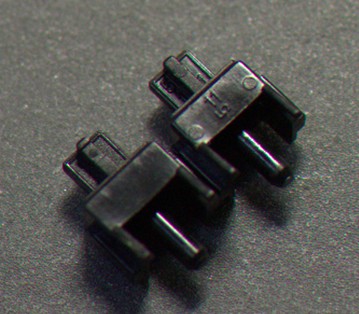

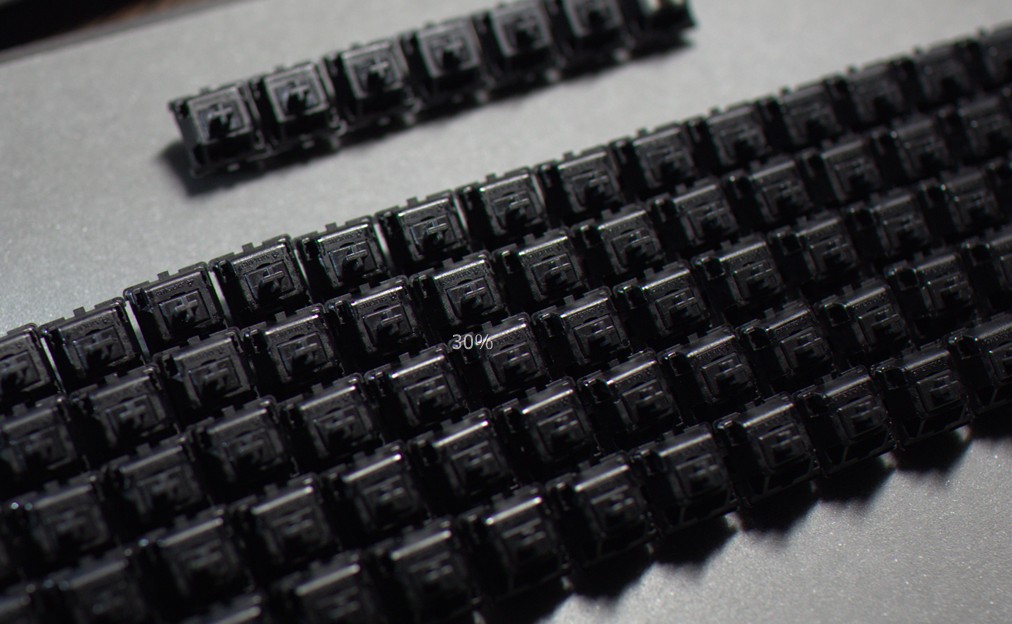

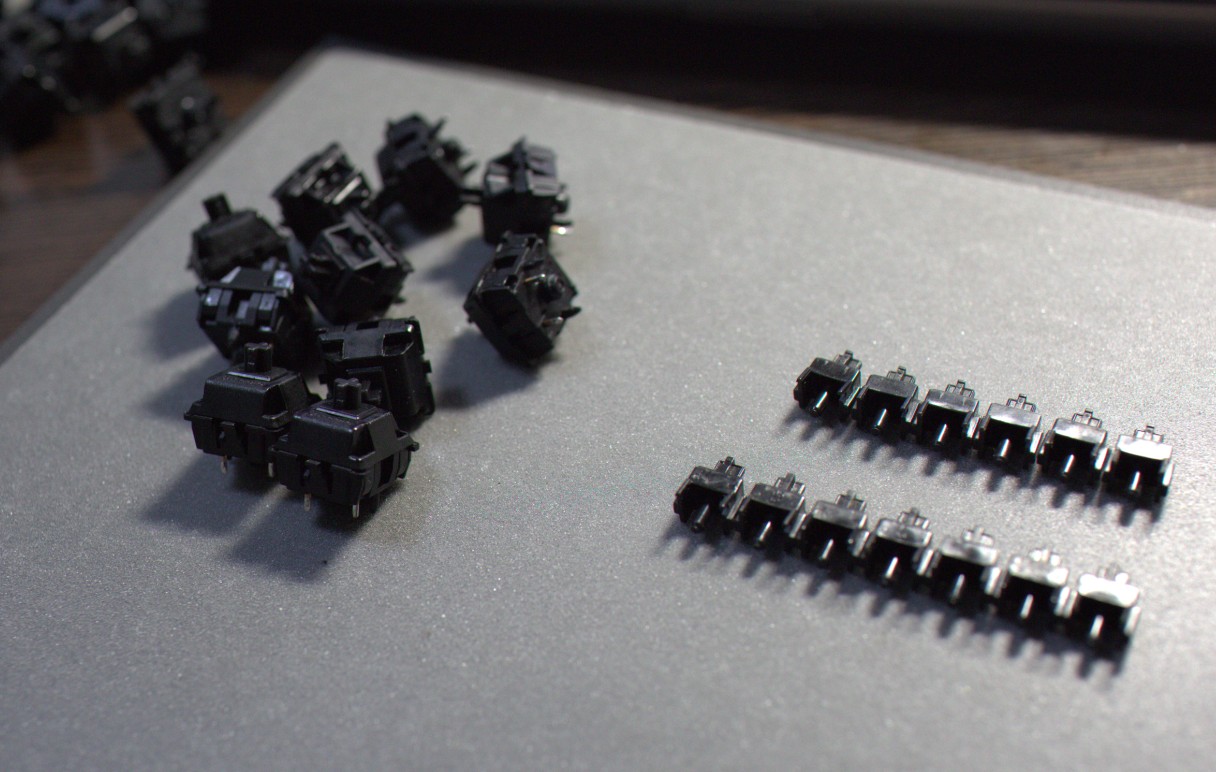

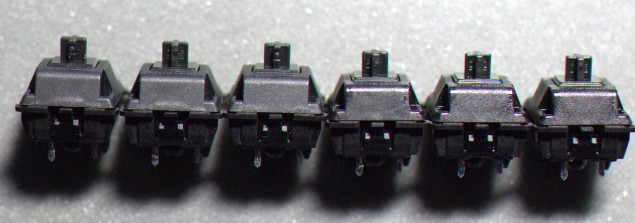

However, I'm not sure..I found the G80-1000 made in 1987.. i took some photos of the switches.. sprit (from KBD) asked me to check the slider..there is a small hole face to the LED hole.. for keycap connection..



I checked but not all of the slider is the same.. all of them have the small hole but 3 of them are in the opposite direction..








now..I'm confused..how to judge the vintage black?

can some one answer my questions?

if u like to chat with me

[email protected]

that is my email.. thanks

나쁜동화 13-07-04 11:47

1. If you have a question(s), you can post it(them) on Q&A board.
2. What's the matter with switch is vintage or not? IMHO, what you feel good is the best switch(es).
josh 13-07-04 11:53

thanks..just want to finger out..^_^
우라늄청축 13-07-04 12:03

Typing feeling is most important factor for judging what is vintage black switch as your friend said. Many of ppl in OTD may agree with that.
Even if cherry logo is old style, switch can make annoying noise somehow, I say cherry logo is only external standard of judgement; I think some swtich combined with old cherry housing and new slider or different lot.
Springs... I have disassembled a lot of G80-1000, old G80-3000 and even G80-0528(made in 1985) model. and I found sometimes springs from those switches have different color. spring may have effect on typing feeling but not absolute factor for what is judging vintage black switch.

So, my conclusion is same with Mr.나쁜동화 said in previous comment.
josh 13-07-04 12:17

thanks!very helpful..
wzz47 13-07-04 14:12

居然来OTD发帖了哇~~~顶你一下~~
josh 13-07-04 14:51

河马哥...谢谢啊..其实来这里也不算少了
yab8433408 13-07-04 16:47

一个字都看不懂 估计是在讲老黑轴 不知道猜对没……
josh 13-07-04 17:10

龙哥..我给你发中文..在ec有
시준아빠 13-07-04 16:57

replies in 3 different languages!!
josh 13-07-04 17:10

^_^
금환식 13-07-04 22:24

댓글이 다국적이군요 ㅎㅎㅎ
zenuty 13-07-05 00:10

옷디의 국제화..!!

하지만 뭔말인지 전혀 모르겠네요 ㅠ
저도 빈티지 흑축 좋아합니다.
zenuty 13-07-05 00:15

Hi josh
Korean is not understand your chinese language reply.
Please once more wirte to english translates.
i wonder basicaly it is formal on the OTD coummunity.
Because Many korean user want to see chinese reply.

i hope you get to the nice nib board ^_^
josh 13-07-05 00:30

thanks..i will write some translates
QINQIN 13-07-06 10:26

黑轴黑轴黑轴黑轴黑轴黑轴黑轴黑轴黑轴黑轴黑轴黑轴黑轴黑轴黑轴
josh 13-07-08 01:21

好久不见O(∩_∩)O~~
알렉스 13-10-17 02:06

Vintage black ..
